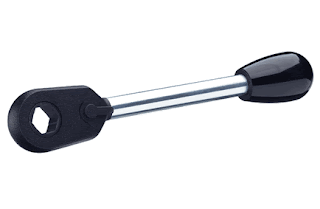

GN 316 Interchangeable Insert Ratchet Wrenches

Diane reporting, with another new product from our line: series GN 316 Interchangeable Insert Ratchet Wrenches with Reversing Lever. Made of steel and available in metric sizes, these RoHS-compliant Ratchet Wrenches are ideal for assembly and repair work, as well as fixed applications on machinery and equipment. The housing of the wrench is coated with black matte plastic in a textured finish. The knob is made of glass fiber-reinforced polyamide technopolymer.

In order to reverse the operation of this wrench, you simply move the cam lever from its middle position either to the left or to the right to obtain the function required. In the middle position the ratchet function is eliminated and the spanner can be used in both directions as an ordinary wrench.

These wrenches are available in tapped insert type, round bore with keyway, and square bore type. The inserts are easily interchangeable--to exchange the inserts remove screw and cover--and can be supplied individually upon request. For certain minimum quantities, hexagon and modified inserts with inch size threads, round bores with keyway, and square holes are available. Other handle lengths are offered upon request.
